- Size: 2580*1370*2180mm
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: DZGZ
- Model Number: DZGJ
- Weight: 100.000 kg

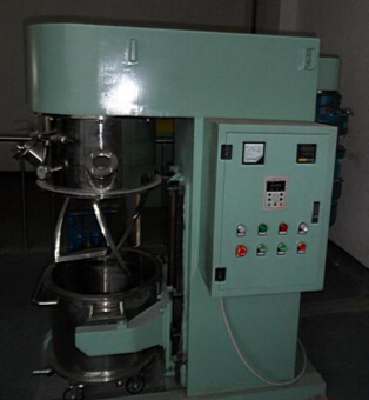

1,The design volume:50L.
2,The main Material:SUS304.
3,The number of the stirring shaft:2;Scraping knife:1(F4).
4,Mixing form:Multilayer paddle(1 with F4 plate scraping bottom).
5,Motor power:4Kw/1450 Turn.
6,Agitation shaft rotation (rotation):0~150 r pm Frequency conversion speed (frequency converter brand meta vector type).
7,Planetary frame and scraped surface agitator speed (revolution):0~60rpm Frequency conversion speed regulation
8,e kettle cover lifting method:Hydraulic lift.
9,The kettle cover travel.:470mm.
10,Vacuum degree:-0.098mpa.
11,Heating mode:1500W Infrared heating (barrel bottom).
12,Infrared heating (barrel bottom).:ZG4 barrel jacket circulating cooling.
1 Description: 3, barrel inner net size with 420mm * 380 mm; with a water-cooling jacket; material: SUS304, all the discharge port is ZG1.5 inch quickly without the accumulation of the material; the bottom loaded 4 pulley bearings, linear slide, the position switch is a turntable structure, convenient two bucket feeding, mixing and pressure the host material, with two barrel
14,The kettle opening Description: with 80 mirror; G6 special wire liquid inlet (before G4), especially silk vent (former right), M14 * 1.5 vacuum gauge port (former right); G6 special wire for vacuum pumping (left), DN50 (right after the observation port, low voltage lamp).
15, the hydraulic pressure machine: hydraulic discharge, total pressure of 1T; with the foot switch control.
16, the control Description: stirring motor, inverter, hydraulic station motor, electromagnetic valve, pressure type mirror port observation lamp control; lifting stroke control, material temperature display, emergency stop button. Current, voltage monitoring.
17, safety interlock Description: A. capping drop in place, to start mixing. B. stirring work condition, capping cannot rise. C. rose, stir not work. D. cover lifting by adjustable stroke control, automatic stop.
18, parts: the discharge pipe 1, with 1 sets of valve discharge pipe, the standby rubber ring 1, 1 sets of F4 scraper.
19, dimensions: 2580 x 1370 x 2180 mm (dynamic 470mm).
20, weight: 1300Kg
